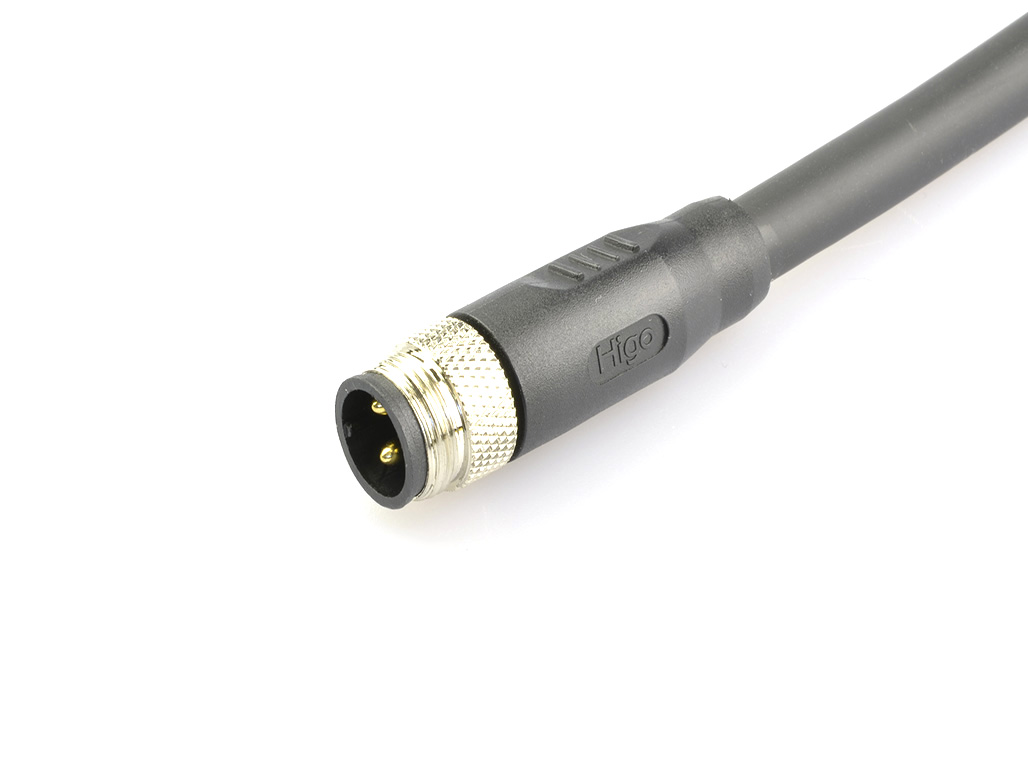

3-pin HIGO L513 male connector cable with 1000 mm length, screw locking and waterproof IP67 protection rating. Suitable for e-bike battery connections and high-current applications.

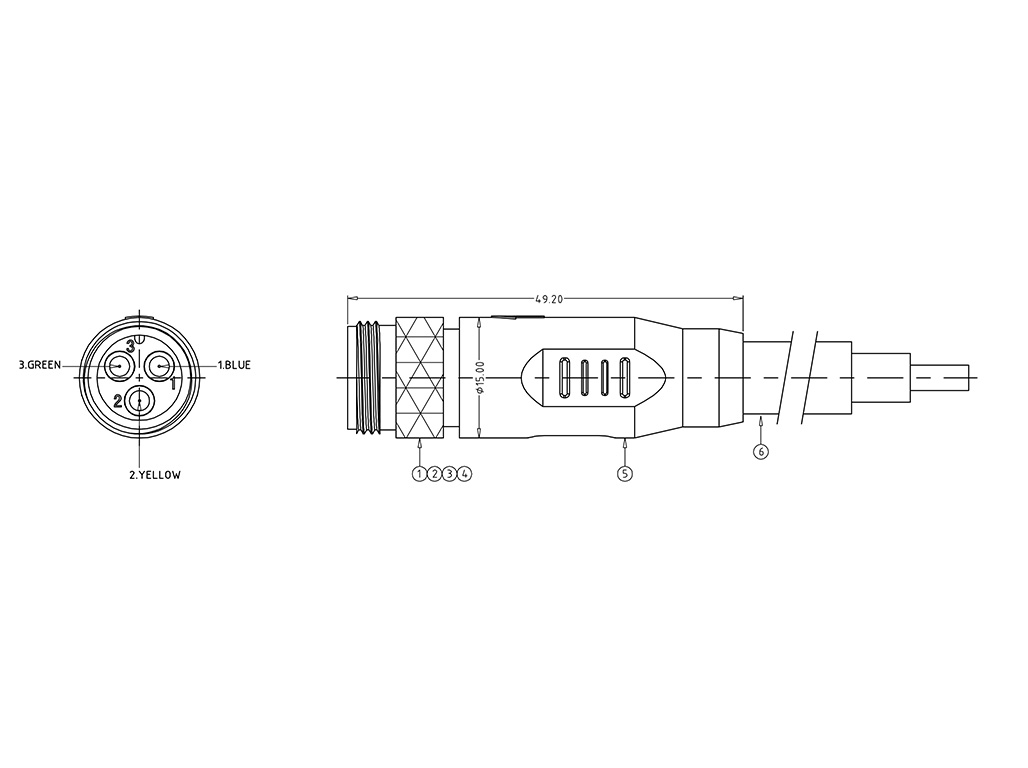

Color coding: black
Cable jacket: PVC, black, Ø 9.0 mm
Conductors: 3 × 4.0 mm² with Teflon insulation
Rated for: 60V DC · 48V AC · 35A · IP67 · –25°C to +80°C · approx. 200 mating cycles
Locking: Screw locking
HIGO code: L315AG P 00 B8 1000
Note:
Rated current: 35A (2 power pins loaded 28A / 2A, 3 power pins loaded). Other cable lengths or configurations available on request.
